Technical data

*Time setting:1~99 minutes(RC813,RC812);1~99 hours(RC710)

Notice

The RC710 version is upgraded, and the control timer (countdown) has been upgraded. After the upgrade, the countdown time range is 1-99 hours, and other functions remain unchanged.

Subsequent products delivered are the upgraded version of RC710.

Product Main features

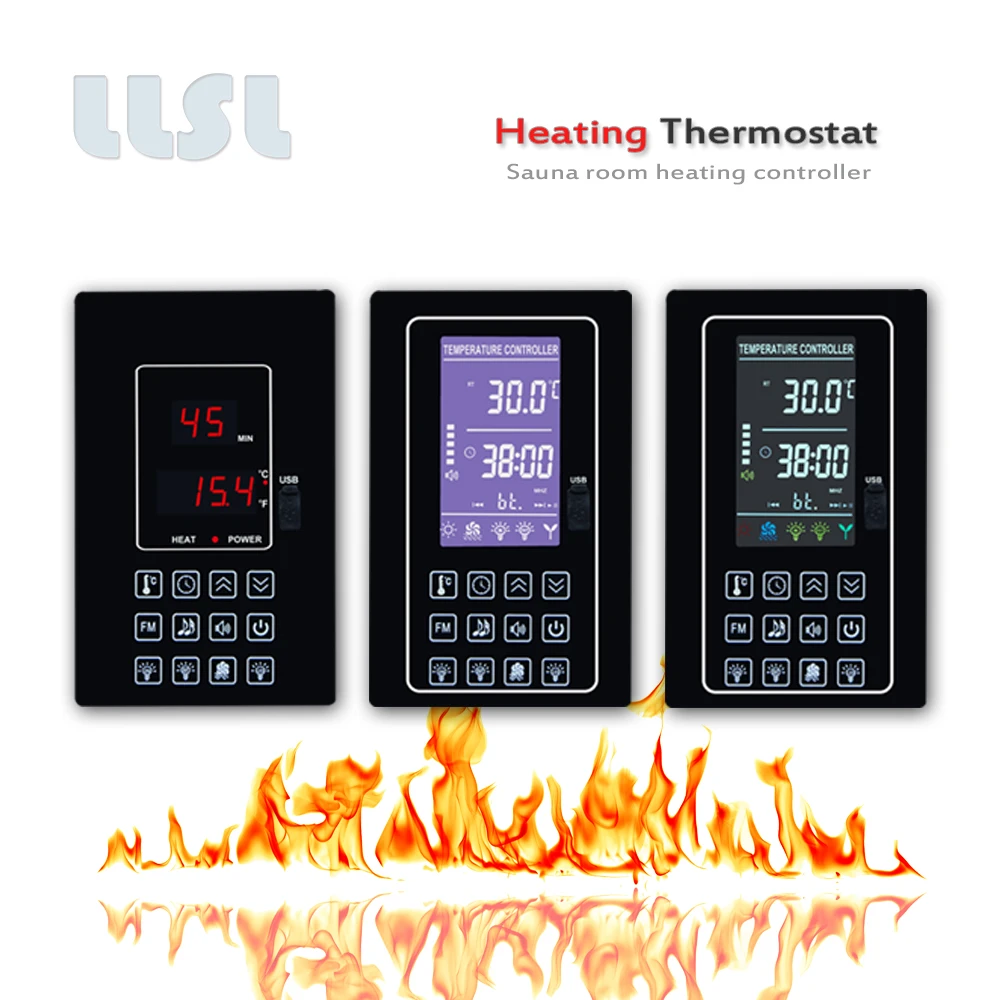

The difference between RC710RC812RC813

1-1.RC710:Celsius temperature and Fahrenheit temperature switching transport ( ° C / ℉)

1-2.RC812:Blue LCD screen，the identification and status of each function are clear on the screen

1-3.RC813:Color LCD screen，the identification and status of each function are clear on the screen

Wiring diagram and symbol description

Product description and application

Home screen quick peference

RC710

RC812 & RC813

Product size and installation

Controller connrcted equipment load power>4500W,controller connection diagram(110~240VAC)

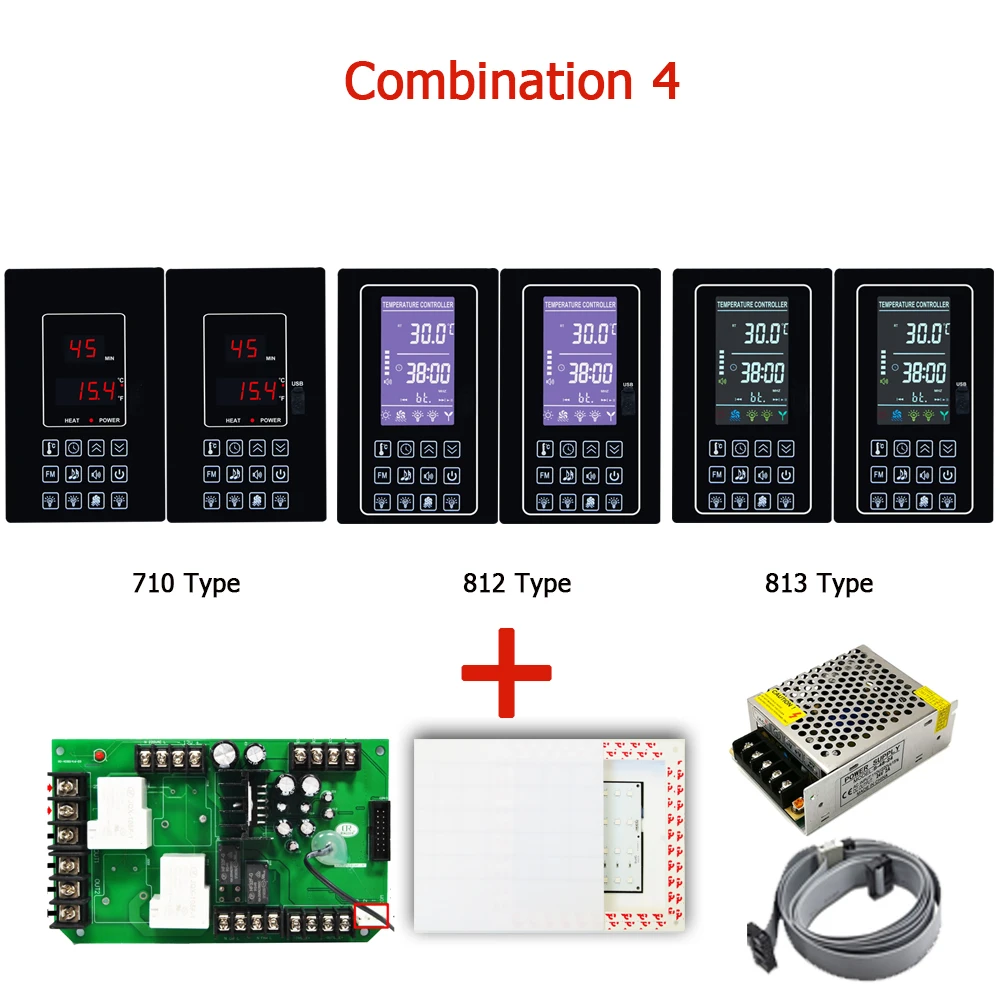

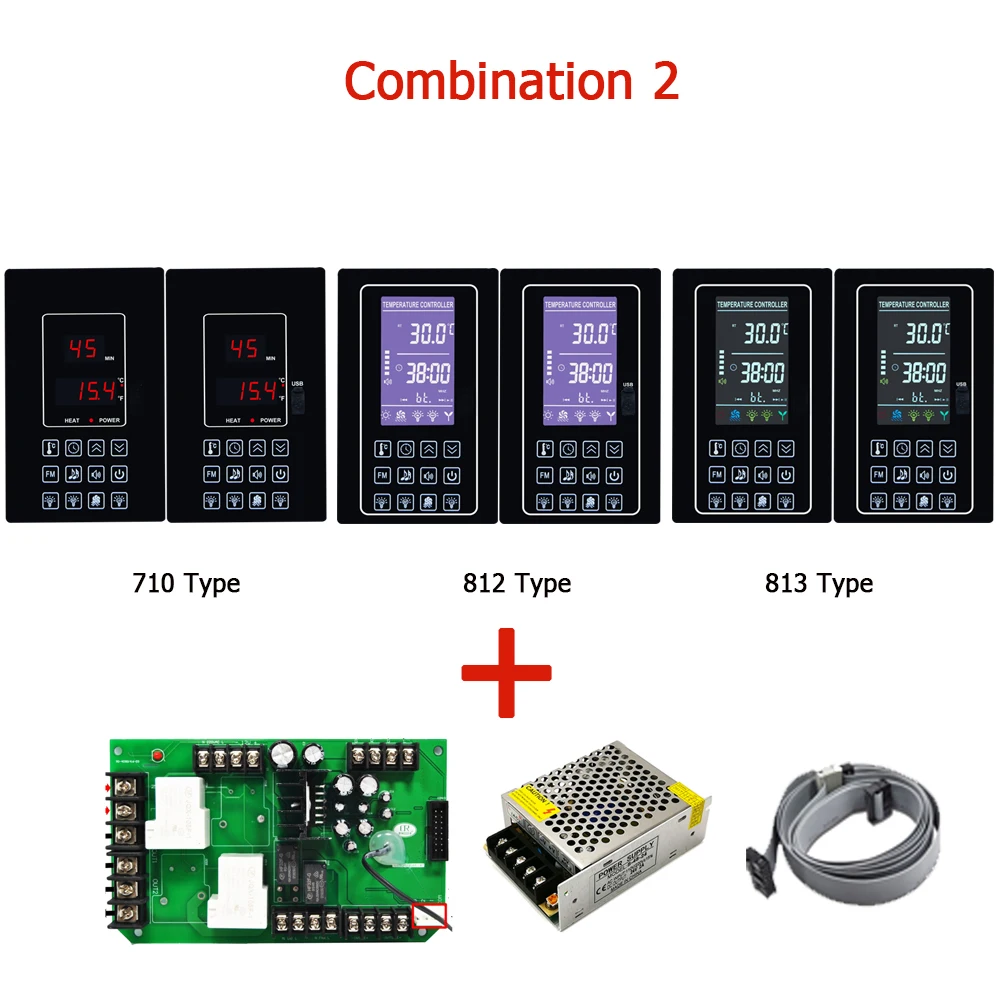

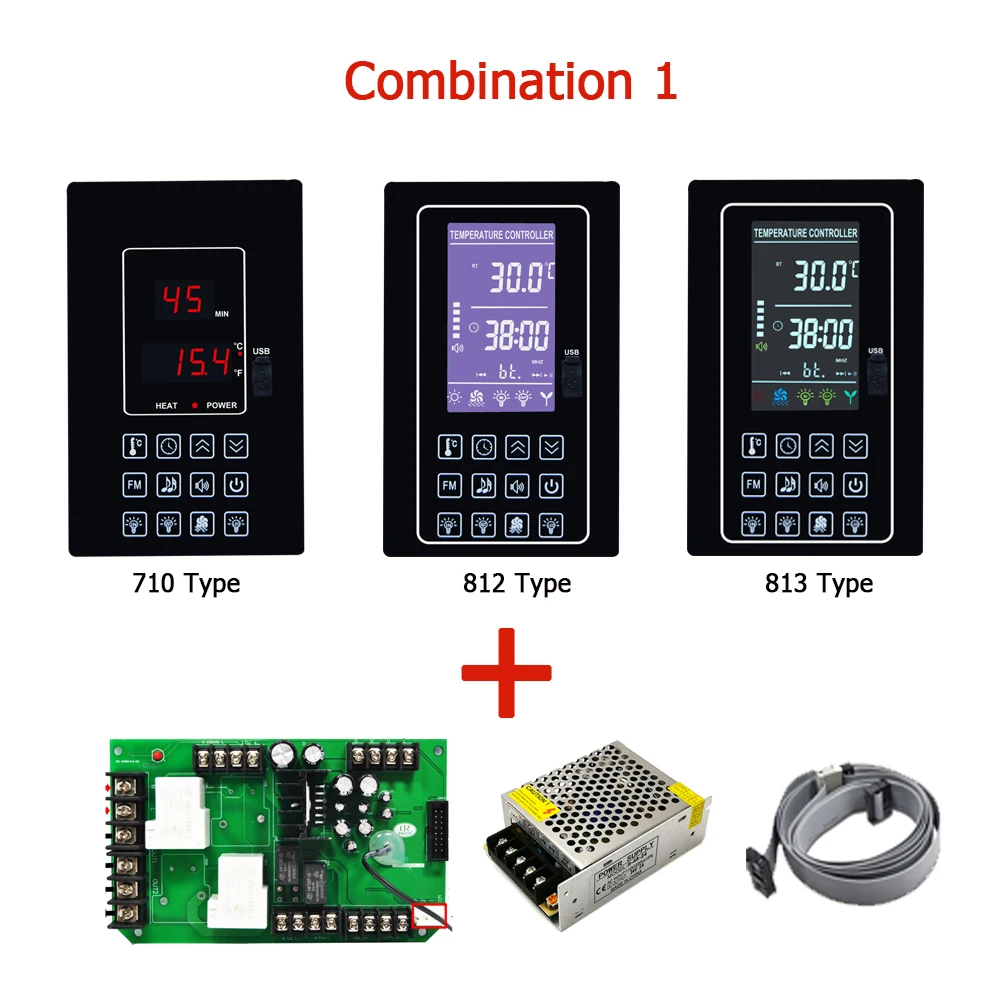

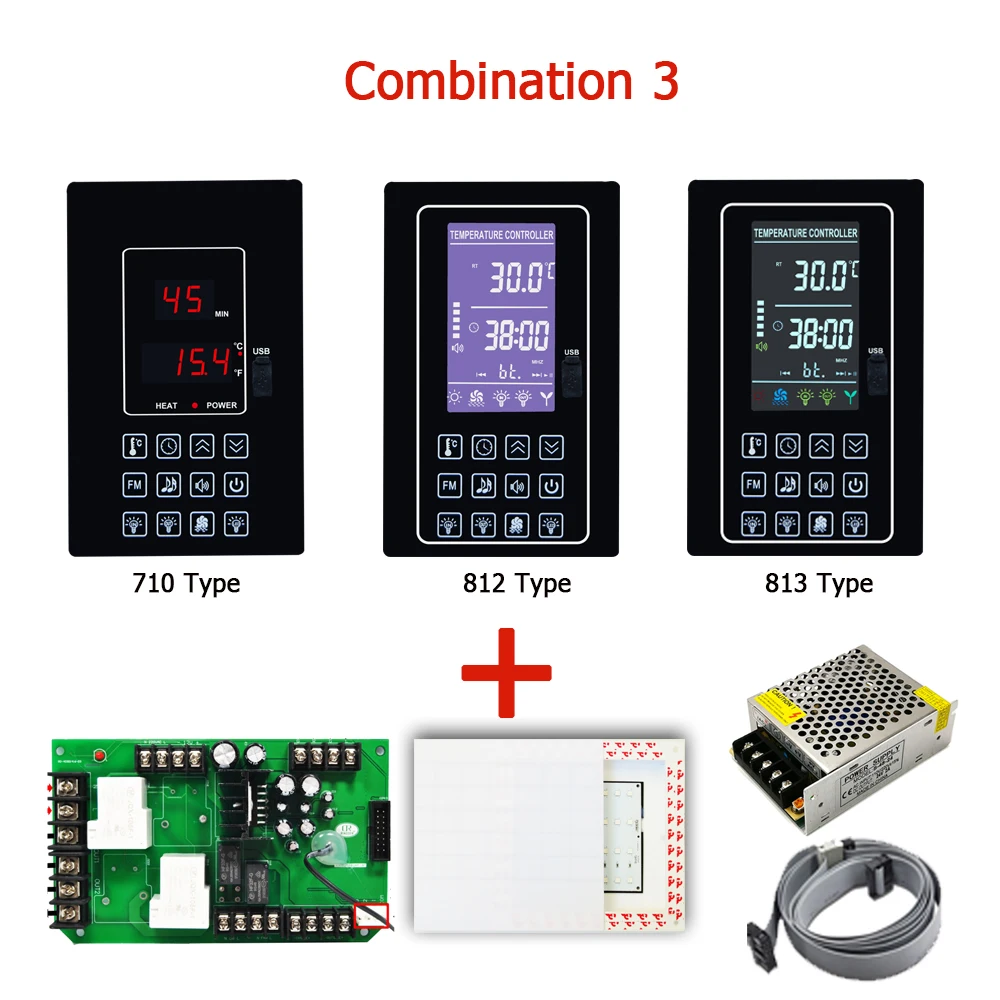

Product List

1. Main display unit x 1PCS

2. Vice display unit x 1PCS (optional)

3. Power Main board (control board) x 1PCS

4. Cable connecting main board and main display x 1PCS (total 1.3m)

5. LED board with cable(wire: 1m for standard) x 1PCS (optional)

6.Switching power supply x 1 PCS

7. User manual x 1
